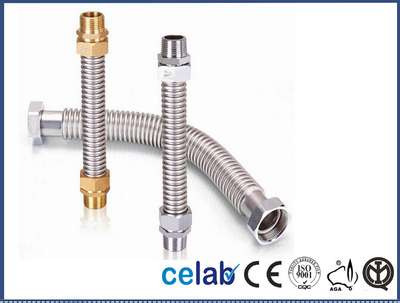

Flexible stainless steel central air conditioning metal hose
| Product name | Stainless steel corrugated metal hose for central air conditioning fan coil unit |
| Size | DN6-DN50 |
| Material | SUS304,SUS316,SUS316L |
| Inner layer | stainless steel corrugated hose |
| Outer layer | stainless steel wire |
| Working temperature | -60°C~+200 °C |
| Working pressure | 1.6Mpa-2.5MPa |
| Bend times | 70-80s |
| Thickness | 0.25mm-3mm |
| Length | 100 - 4,000mm or as your request |
| Application | Flexible joint for helical wrapped hose of central air conditioner |
| Packing | wooden or cardboard boxes, or according to customer request |
| Shipping | 15-25days after order confirmed |
Specifications:
| Thread specifications | Other term | Reference diameter |
| 1/8" | DN6 | 10MM |
| 1/4" | DN8 | 12MM |
| 3/8" | DN10 | 16MM |
| 1/2" | DN15 | 20MM |
| 3/4" | DN20 | 25MM |
| 1" | DN25 | 32MM |
| 11/4" | DN32 | 40MM |
| 11/2" | DN40 | 46MM |
| 2" | DN50 | 57MM |
