Product Detail
FM4009 Series Aluminum Alloy Centrifugal Air Curtain
Share to:

FM4009 Series Aluminum Alloy Centrifugal Air Curtain

Price
0.00
Detail

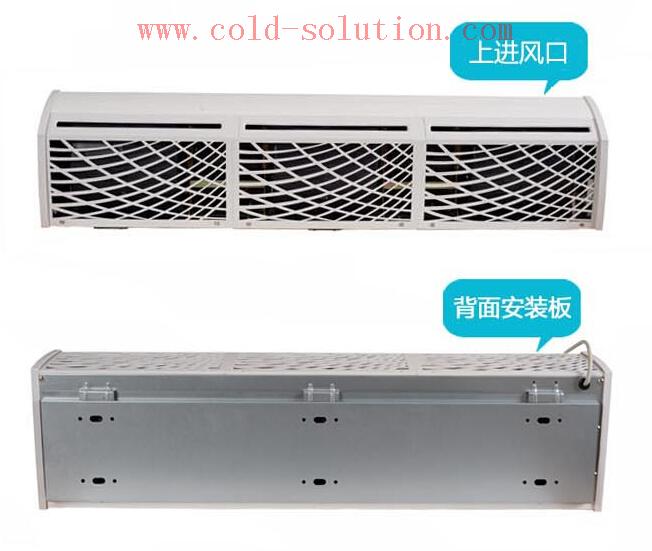

  • High intensity aluminum alloy body. Super fire protection, rust protection and corrosion resistance performance. The appearance is more beautiful;

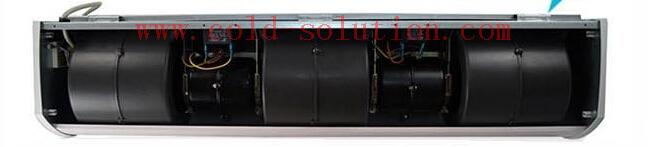

  • Optimized forerake multi-blade retroverted centrifugal rotor with efficient spiral case design. The air speed and air pressure are greater and the noise is lower;

  • New ventilation design is available so that the wind can be adjusted randomly to meet environment with different requirements for wind direction;

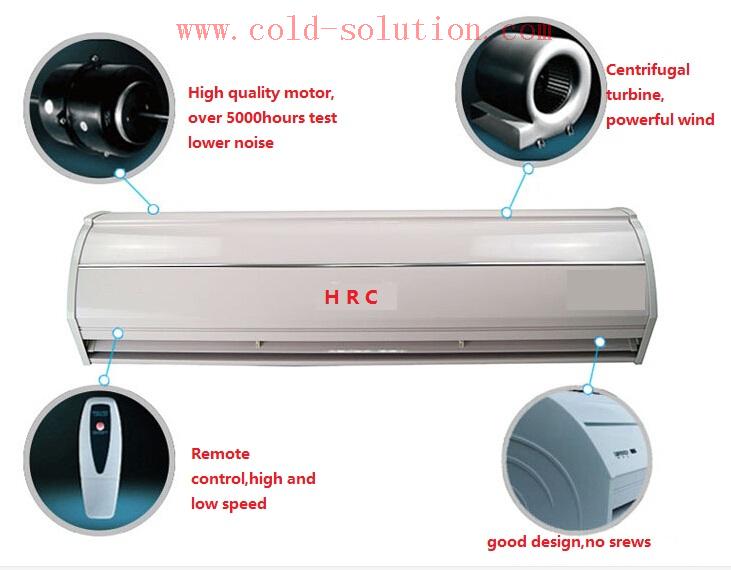

  • Infrared remote control and manipulation are convenient and rapid;

  • 100% pure copper rose motor at low temperature to ensure consistent running for 5000hr without failure;

  • High-quality ball bearing to ensure motor running more smoothly and silent;

  • Resettable thermal protection device will disconnect power when the product is at abnormal high temperature to avoid potential safety hazards to make the operation more safe;

  • Start up at 100V ultra-low voltage which is more convenient in operation;

  • Enclosure class IP44

  • Insulation class E

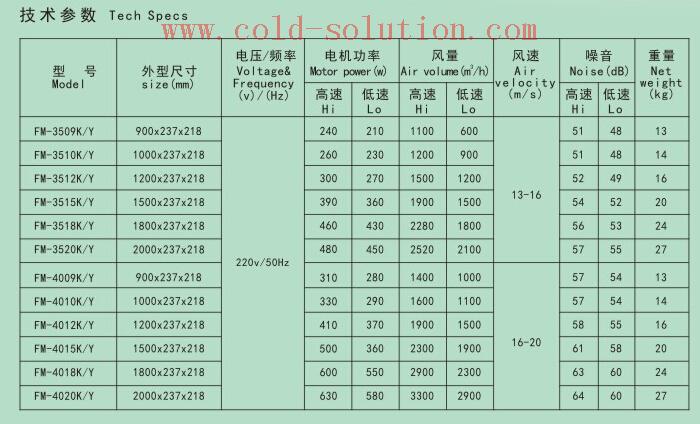

    TypeDimension mmUnit Price
    FM-4009K/Y900x237x21893.10
    FM-4010K/Y1000 x237x21898.57
    FM-4012K/Y1200x237x218105.87
    FM-4015K/Y1500x237x218136.90
    FM-4018K/Y1800x237x218146.03
    FM-4020K/Y2000x237x218164.29
